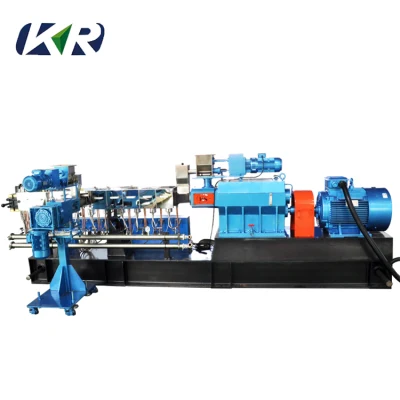

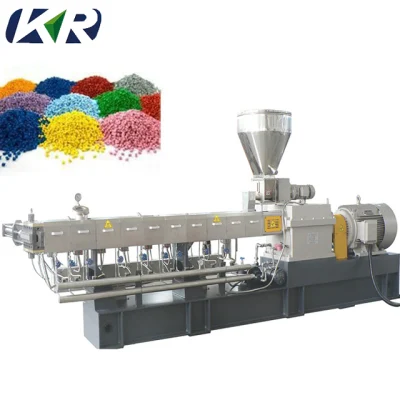

PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine

After-sales Service: Engineers Available to Service Machinery Overseas
Warranty: 1 Year
Type: Granules
Plastic Processed: PE PP EVA ABS PVC
Product Type: Plastic Granules
Feeding Mode: Multiple Feed

Products Details

Basic Info.

Model NO.
TSE
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Screw Design
Double
Voltage
220V/380V
Color
Requiremet
Keywords
Twin Screw Extruder
Motor
Siemens
Transport Package
Wooden Case
Specification
Ce iso
Trademark
kairong
Origin
Jiangsu China
HS Code
87265100
Production Capacity
20 Set Per/Month

Product Description



Haisi extrusion provides advanced pelletizing line for all kinds of filler masterbatch.
We design the filler masterbatch extruder according to the output, formula and final application as your request.
Filler Masterbatch are concentrates of CaCO3 or Talc or BaSO4 in a polymer base.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachineThe Basic Formula

Base Resin Filler Type Addictives
PE CaCO3 55-85% PE wax
PP Talc 25-60% White Oil
PS BaSO4 40~70% Anti oxidant

Processing of Filler Masterbatch
a) Feeding
There two feeding system for the filler masterbatch extruder:
Volumetric feeding system
Weight the raw material separately according to the formula
Then put all the material into high speed mixer for 5~10minutes mixing
Discharge the material into spiral loader
Loading the material into the hopper of volumetric feeder
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachineLoss-in-weight feeding system (automatically and higher accuracy)
Put the raw material into each tank on the ground.
Vacuum loader will convey each component into the storing silo.
The raw material will fall into the loss-in-weight feeder automatically. The feeding system will feed the material separately into extruder according to your formula setting one the HMI.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machineb) Filler masterbatch extruder
According to your application & output, there're different models to choose.

Technical Specifications of filler masterbatch extruder

Mode Diameter
(mm)
L/D Speed
(r/min)
Motor power
(kw)
Torque
(N.m)
Capacity
(kg/h)
TSH-35B 35.6 32-52 600-800 15-22 119 30-70
TSE-40B 41 32-52 600 45-55 437 90-150
TSH-52B 51.5 32-60 600 90-132 682 270-400
TSE-65B 62.4 32-64 600 90 716 250-360
TSH-65B 62.4 32-64 600-800 110-160 875 350-500
TSE-75B 71 32-64 600 132 1050 350-500
TSH-75B 71 32-64 600-800 200-250 1365 600-800
TSE-95B 93 32-64 600 315 2560 800-1200

c) Filler masterbatch extruder flow scheme
There is no perfect pelletizing machine, but only one that is most suited for you.
Every compounding process is specific and distinct.

1.Strand pelletizing line for filler materabtch extruder
Incorporation of Fillers: Caco3, Talc, TiO2, carbon black,filled PE, PP, or EVA, etc.
High Concentration Color Masterbatches: PE, ABS, PS, EVA, PP,etc. with high concentration of pigments and other
processing aids.
Masterbatches with Flame-retardants: PE, ABS, PS, EVA, PET, PP, etc. with flame retardants and other additives.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine2. Water Ring pelletizing line for filler masterbatch extruder
PE, EVA etc. Filled with CACO3,talc,TIO2,carbon black etc.
Color concentrations of PE,ABS, PS,EVA,etc;
Flame retardant master batches of ABS,PS,EVA,etc;
Master batches with PE,PP,PS,etc carriers for degradation applications.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine
3.Air-cooling pelletizing line for filler masterbatch extruder:
Enforcing modification:PE,EVA etc.+CaCo3,Talc, TiO2,Carbon black.
Degradable master batch: PE,PS etc.+starch,additive etc.
Anti-flame master batch: PE, EVA etc.+Sb2O3, Mg(OH)2,AI2(OH)3 etc
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine4.Underwater pelletizing line for filler masterbatch extruder:
The main material is PE+CaCO3
The metering feeders are equipped with single screw, twin screw, hollow screw, forced feeding ,side-feeding, etc
Different requirementsof feeding, such as power, pellet, lump and luqid material.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine
Applications
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachineFILLER masterbatches are used in injection, blow-moulding, film(One layer or Multiple layer), sheet and tapes applications. They offer the following advantages:
a) Injection & blow-moulding
b) Film, sheet, sacks, bags, raffia
c) PE & PP tapes
d) HDPE & PP Pipe

Characteristics of filler masterbatch extruder
*TSE series filler masterbatch extruder use innovated design of heater tightened style, it insures high efficiency of heat transfer and high longevity of heater.
*TSE series filler masterbatch extruder has various modes of pelletizing, such as water-cooling strand machine, air-cooling pelletizing machine, water-ring pelletizing machine, under water pelletizing machine etc.
*The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high functions.
*The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.
PP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachinePP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachinePP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making MachinePP PE EVA PVC +Cacao3 Additives Plastic Filler Masterbatch Compound Making Machine
