Product Description
Glass fiber tissue mat as a kind of new energy-saving materials, widly used in the surface of ceiling tiles and wall panels,
no leakage, tensile moistureproof. It can be combined with different texture and various colors to meet aesthetic demands.
Traditional tissue coating is easy to get damp,airtight,easy mold, and poor flatness defects, after a certain period of time,
the mat surface prone to yellow, deformation, fracture, fall off wait for a phenomenon,feel is very poor.
New coating glass fiber mat,exempt the damp and mold. At the same time, the fire performance of glass fiber mat coating
with high grade, the strength of the ideal and moistureproof property, was welcomed by the building indestry manufacturers.
Fiberglass tissue characteristic and functions
1. Fireproof and heat insulation.
2.Anti-bacterial and anti-pollution.
3.Uniform fiber,good color retention.
4.Noise reduction and sound insulation.
5.Smooth and clearn surface,uniform mass.
6. UV resistance, corrosion resistance and wear resistance.
Good Material can
Creat Good Performance
Fibers and binders are evenly distributed,without hairiness, oil spots,
stains and other defects. The resin has fast penetration speed,
good film coating, and easty to remove air bubbles.

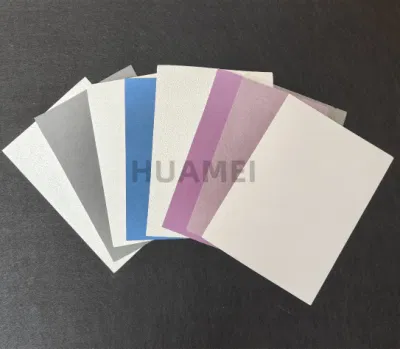

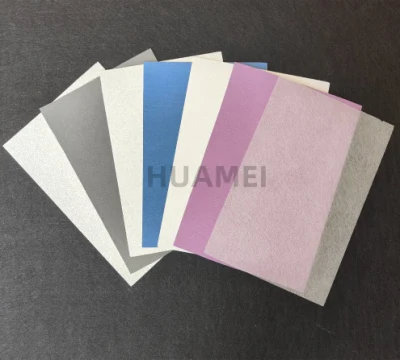

Various Design of fiberglass tissue
Our Fiberglass tissue can creat different designs, the best-selling and most popular design is HM000A,
Its regular density is 210g/m2, 100g/m2-300g/m2 density also available, like 120g/m2, 150g/m2, 180g/m2 and so on.
White painted designs including: HM600, HM700, HM800, HM700 and HM800 with excellet acoustical performance.
For colored design glass fiber tissue, the black color widly used in cinemal ceiling tiles surface decoration.
Other colors can be painted according to RAL and Pantone color card.
Technical Data of Fiberglass tissue mat
PRODUCT DESCRIPTION: | Fiber Glass Tissue Mat |
MAIN MATERIALS: | Glass fiber, fire retardant, calcium powder, organic binder |
WIDTH: | 1230mm; 1250mm; 610mm; 625mm |
DESIGN: | #000, #000B, #600,#700,#800 & Colored |
AREA WEIGHT: | 150g/m2, 180g/m2, 210g/m2, 320g/m2, 350g/m2 |
MOISTURE CONTENT: | 0.6% |
WATER HOLD OUT: | 63% |
COMBUSTIBLE CONTENT: | 14% |
AIR PERMEABILITY: | 325mm/s |
TENSILE STRENGTH(MD) | 365(N/50mm) |
TENSILE STRENGTH(CMD) | 263(N/50mm) |
Fiberglass Tissue/Mat Used in all kinds of ceiling surface, wall panels surface decoration,
with sound absorption and noise reduction, heat insulation,antibacterial and mildew.
Glass fiber tissue mat Loading capacity
SIZE(WIDTH) | PACKING | OUTSIDE DIA | LOADING QTY(40HQ) |
0.61M/0.625M | 600M/ROLL | 56 CM | 320 ROLLS/ 192000M/ 117120SQM (120000SQM) |
1.23M/1.25M | 600M/ROLL | 56 CM | 160 ROLLS/ 96000M/ 118080SQM (120000SQM) |
0.61M/0.625M | 1100M/ROLL | 75 CM | 180 ROLLS/ 198000M/ 120780SQM (123750SQM) |
1.23M/1.25M | 1100M/ROLL | 75CM | 90 ROLLS/ 99000M/ 121770SQM (123750SQM) |
